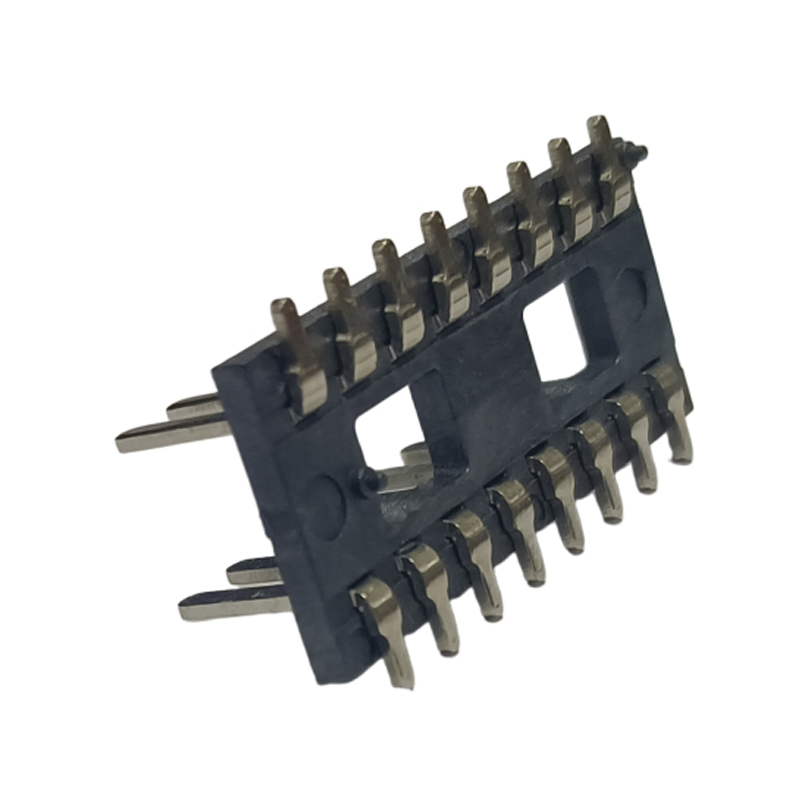

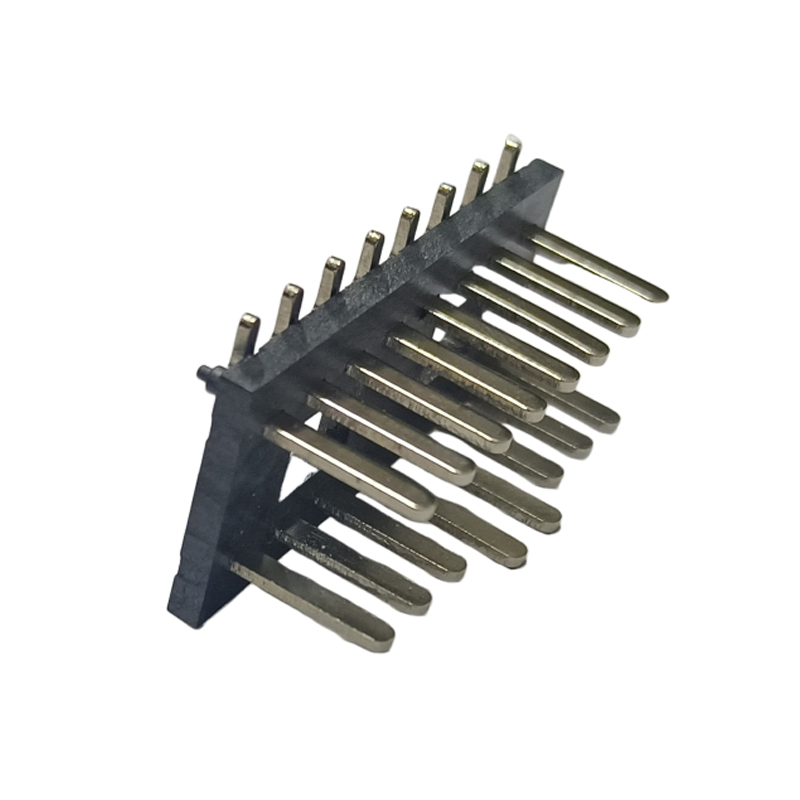

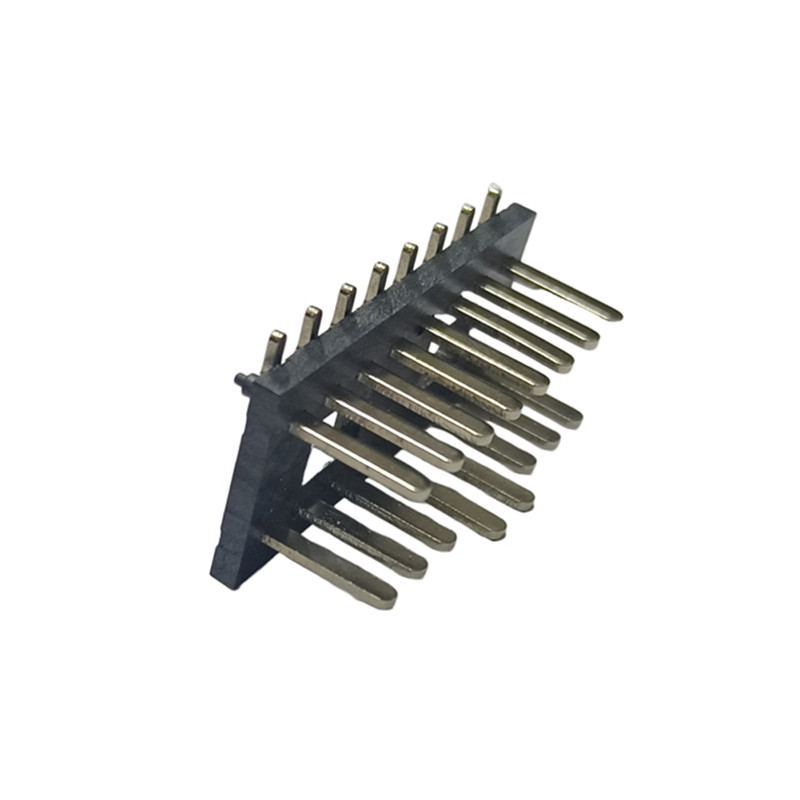

Right angle OBD connector 16 pin is a special designed J1962 male OBDII connector with 16 pins, the material can meet the requirements of fire resistance and high temperature resistance, so it is very suitable for reflow soldering process to solder PCB boards.
Features:
- High quality J1962 OBD2 Connector male
- Right angle 16 pins or less, nickel plated brass terminals
- Plastic materials can be able to withstand high temperature
- 150 pcs each roll packing designed for SMT soldering
- Compliant with CE, RoHS, FCC.
Specification:
| Name | OBD Connector |
| Model | ST-SOM-001E |
| Color | Black |
| Pin No. | 16 |
| Pin Material | Nickel Plated Brass |
| Solder Resistance Temp | 285℃ |
| Heat Distortion Temp | 280℃ |
| Flammability | UL94 V-0 |
