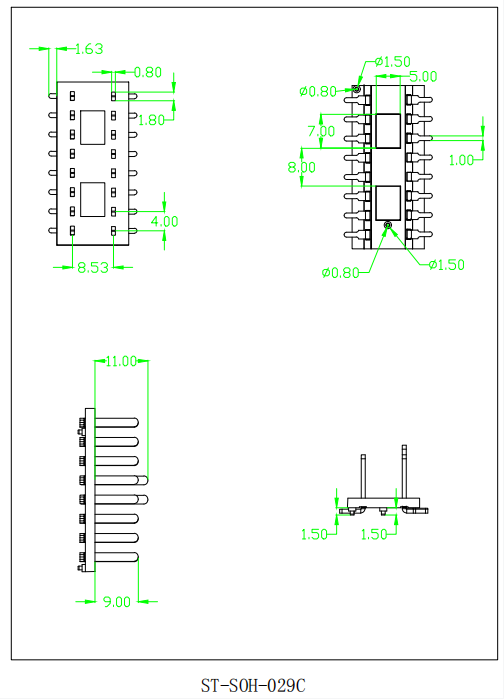

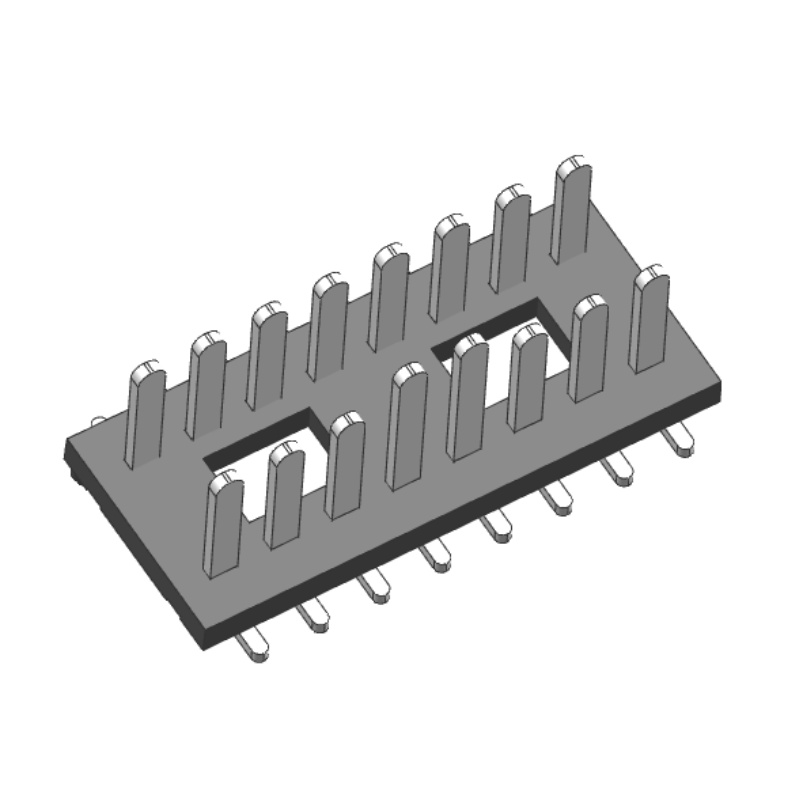

This is a 16-pin right-angle DIP (Dual In-line Package) socket, specifically designed as an OBD-II (On-Board Diagnostics II) connector male. It features right-angle brass pins, making it ideal for PCB (Printed Circuit Board) mounting in automotive diagnostic applications.
Product Features
- Pin Configuration: 16 pins arranged in two rows of 8, matching the global OBD-II standard pinout for universal compatibility with all OBD-II compliant vehicles.
- Right-Angle Design: The bent pins allow for low-profile, horizontal PCB mounting, which is space-efficient and suitable for tight under-dash environments.
- Brass Pins Conductivity: The pins are made of brass, a material known for its excellent electrical conductivity, corrosion resistance, and durability. This ensures stable signal transmission and a long service life, even in the harsh conditions of automotive electrical systems.
- Standard OBD-II PinoutThey follow the global OBD-II 16-pin standard, ensuring universal compatibility with all OBD-II compliant vehicles worldwide. This supports protocols like CAN, K-Line, and PWM.
- DIP Socket Structure: The black insulating housing is typically made of high-temperature thermoplastic, which can withstand the heat generated by automotive electronics and soldering processes.
Applications
It is primarily used as the interface for connecting OBD-II diagnostic tools, code readers, or telematics devices to a vehicle’s ECU (Engine Control Unit). It enables real-time access to vehicle data, including engine performance, fault codes, and sensor readings, for maintenance, troubleshooting, and emissions testing.
Core Value
By combining the OBD-II connector with a pre-tested PCBA, these assemblies deliver a plug-and-play solution that reduces development time and ensures reliable communication between external devices and a vehicle’s ECU. Their standardized design and robust build make them a foundational component in modern automotive electronics.
