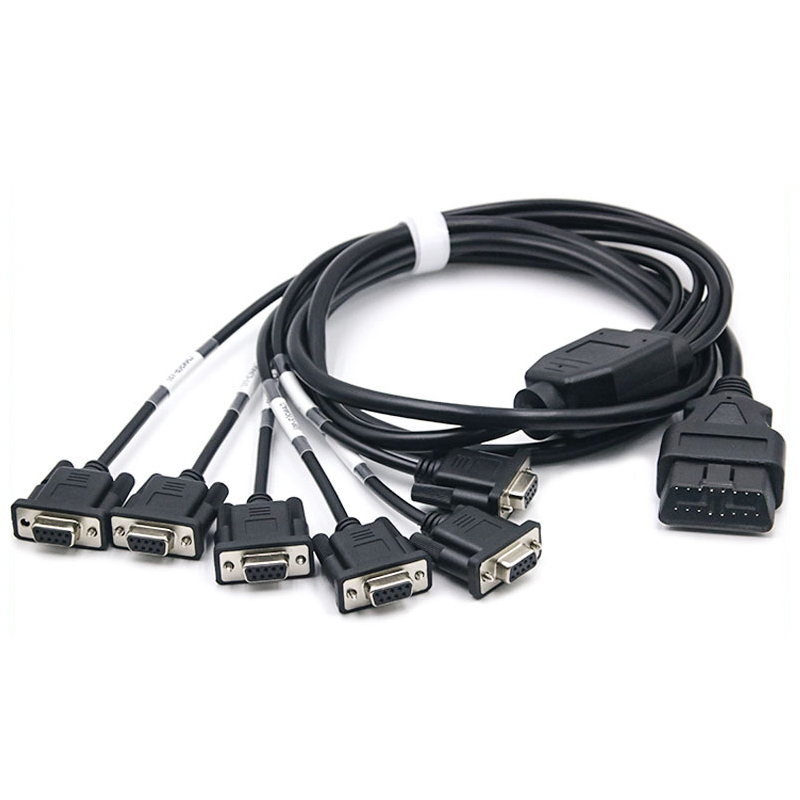

This is a OBD cable 16 pin male to six DB9 female 6 in 1 VGA D-sub 9 Pin OBDII adapter RS232 serial port Line, one OBD male to six DB9 female extension cable.
Features:
- High quality OBD extension cable
- 16 Pin 12 Cores to 6 DB9 female connectors
- Easy to get Can signals from Can H and Can L

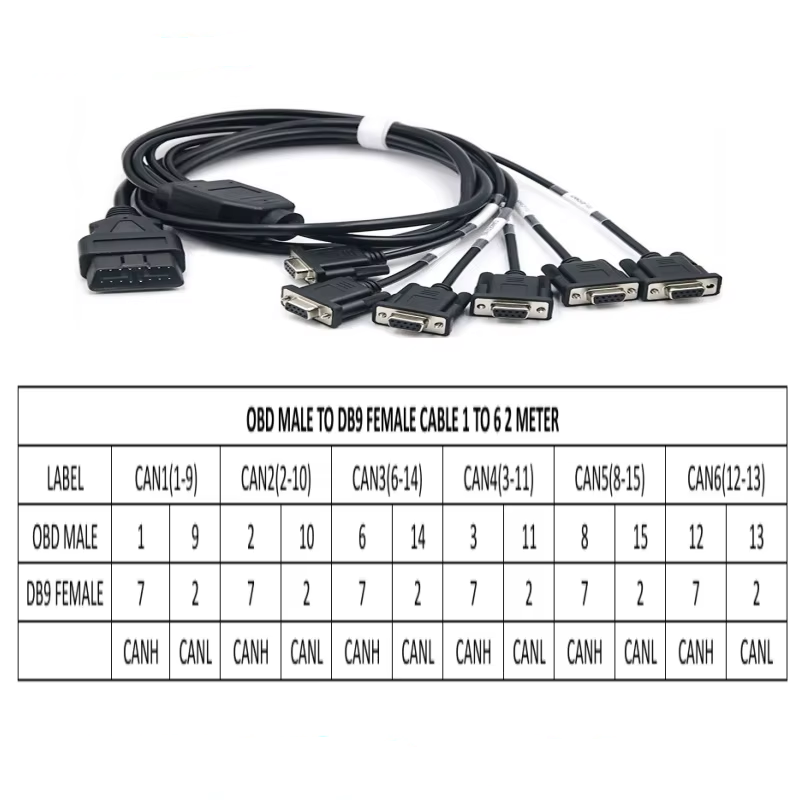

- Support customized wiring diagram for the definition
- Compliant with CE, RoHS, FCC
- OEM available for colors, pins, materials, length
Specification:
| Name | 6 IN 1 OBD Cable to DB9 Female |
| Model | ST-SOC-606B |
| Color | Black |
| Pin No. | 16 Pin |
| Core | 12C 26 AWG |
| Pin Material | Nickel Plated Brass |
| Length | 30 cm, 60 cm, 100 cm or Customized |
| Heat Distortion Temp | Customized |
