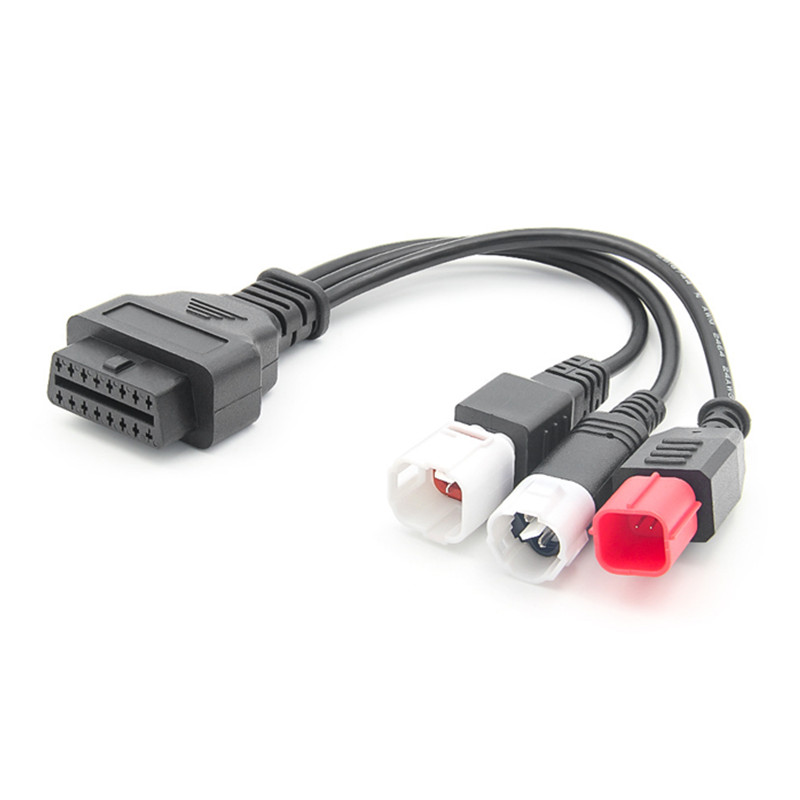

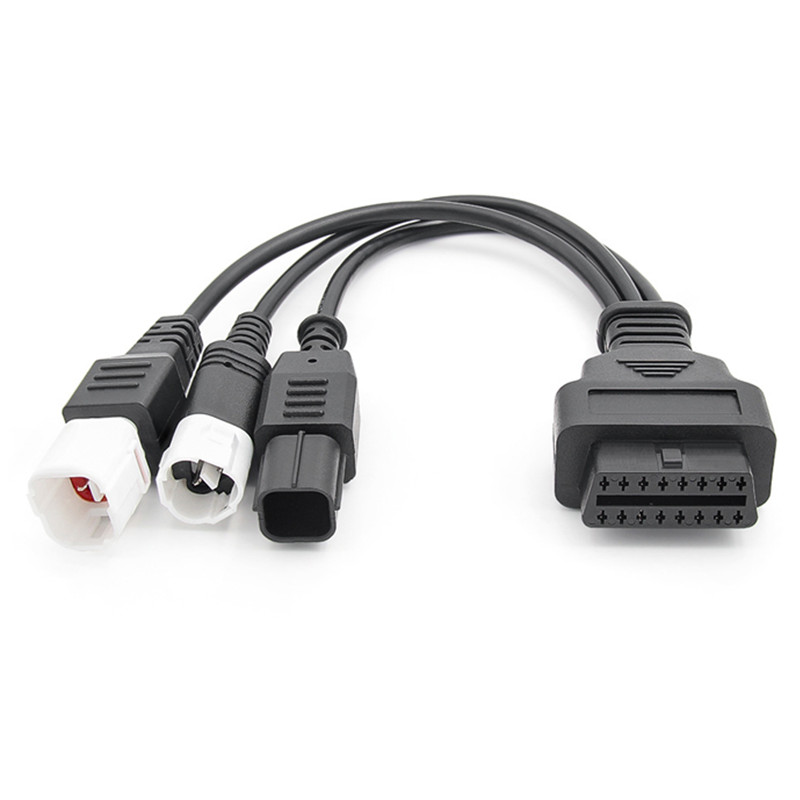

This is an adapter OBD cable used for Yamaha Honda Guzzi Piaggio Vespa motorcycles.
This adapter converts a standard 16 pin OBD2 type plugging into the motorbike diagnostic socket for CAN Bus models. Typically used with diagnostic readers to convert the standard 16 pin plug into the required plug. Can be used with your Code Reader or wireless OBD2 Bluetooth reader or other similar function devices.
Features:
- High quality OBD cable with flexibility and durability
- Standard 16 pin female obd connector
- One to three motorcycle obd adapter, easy to use
- Compliant with CE, RoHS, FCC
- OEM available for colors, pins, materials, length.
Specification:
| Name | OBD Cable |
| Model | ST-MF10-M01 |
| Color | Black |
| Pin No. | 16 Pin |
| Core | 26 AWG |
| Pin Material | Nickel Plated Brass |
| Length | 30 cm |
| Heat Distortion Temp | Customized |
Application:
1. Compatible for YAMAHA 3pin:
YZF-R125, MT-125, YS-125, Delight-125, N-MAX 125, X-MAX 125, X-MAX 300, X-MAX 400, 2018 AEROX 50
As well as other models with 3 pin diagnostic connector.
2. Compatible for YAMAHA 4pin：
Work with all latest Motorcycle model with the 4-pin diagnostic plug, like FJ09, FZ09, MT09, FZ-10, MT-10, XSR900, R6, R1, and tracer 900/GT.
3. Compatible for Honda 6pin：
Fit for Honda Yamaha 1000 R1 from 2020
Fit for Moto Guzzi V851T, Piaggio, Vespa, KTM Super Duke R 2019 2020
Fit for Moto Guzzi Piaggio Vespa Milan Yamaha Harley Dauidson and more
