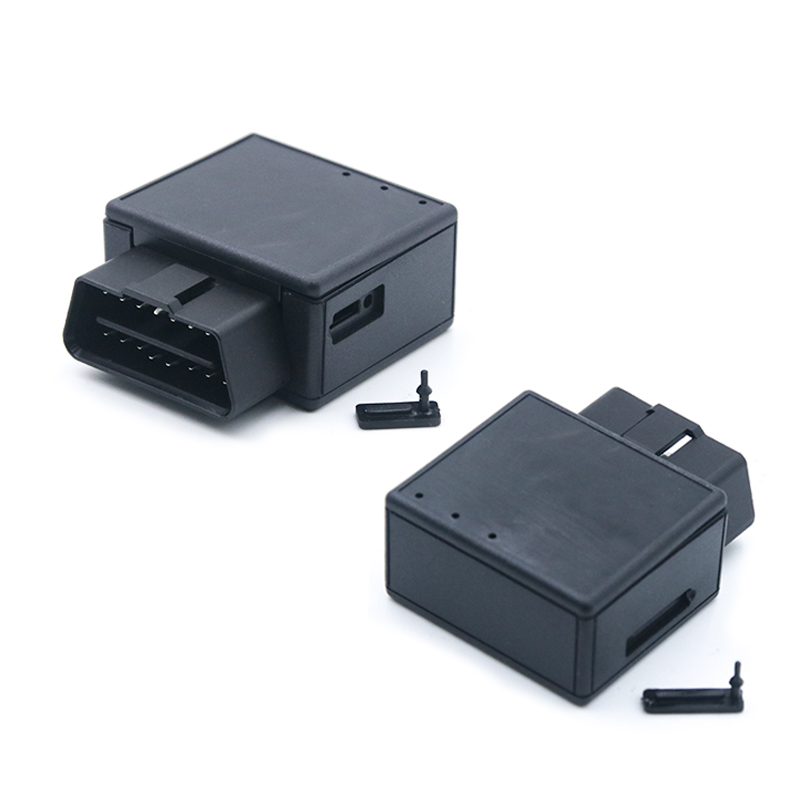

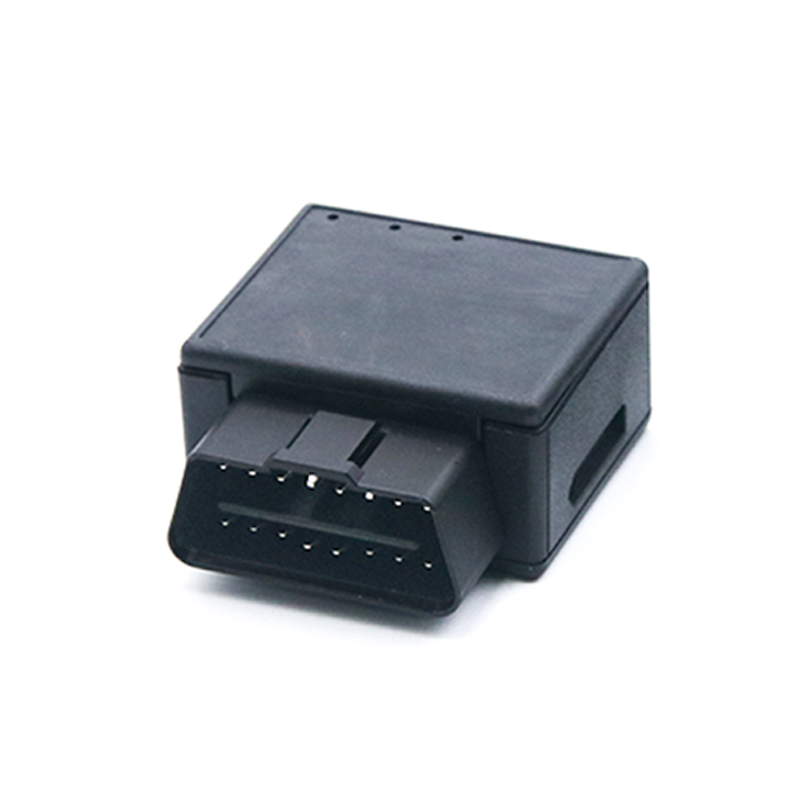

The OBD connector 16 pin with cover is designed by standard J1962 male OBDII connector with 16 pins, and a cover with height at 43.2 mm, it’s easy and smart to be soldered with PCB and assembled both parts by snap-in type.
Features:
- High quality J1962 OBD2 Connector male with cover
- 16 pins or less, nickel plated brass terminals
- The height is 43.2 mm for the cover
- Holes on cover for usb, sim and lights
- Easy to be soldered and assembled by snap-in designing
- Compliant with CE, RoHS, FCC.
Specification:
| Name | OBD Connector |
| Model | ST-SOH-009 |
| Color | Black |
| Pin No. | 16 |
| Pin Material | Nickel Plated Brass |
| Plastic Material | ABS + PC |
| Cover Height | 43.2 mm |
| Feature | Clip-on Type |
